| Business Type | Manufacturer, Exporter, Supplier |
| Type | Mechanical Bar Screen |
| Material | Steel |
| Color | Gray |
| Click to view more | |
Product Details

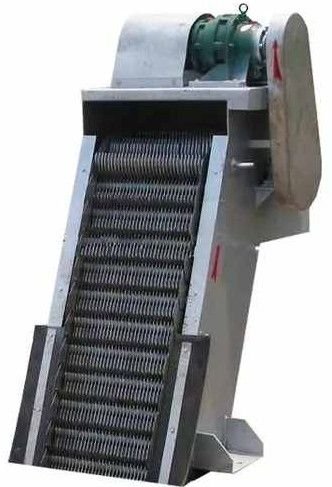

Mechanical screen with rakes of bar vertical way and linear in motion. They are installed in the wastewater channel with angle of 70 - 75°. The equipment consists of screen, motorreducer, base frame, chain mechanism, rake and rake cleaning system. The motion is conveyed to the rakes with the help of the chain mechanism. Number of the rakes depends on to the depth of channel and in the consequence of the length of the screen.
The smooth running, endless track system employs a geardriven cleaning rake to carry screenings from the submerged bar rack to a discharge chute for removal – without the use of chains, sprockets, cables or any underwater moving parts.
Applications- STP headwork: protect downstream equipment, Pumping stations; flood control; Water intake for remove large debris; Ideal for both municipal and industrial use.
Benefits: Above water operation, No submerged moving parts; Flexible & customized design, Heavy duty, wide range, Positive screening discharge.
